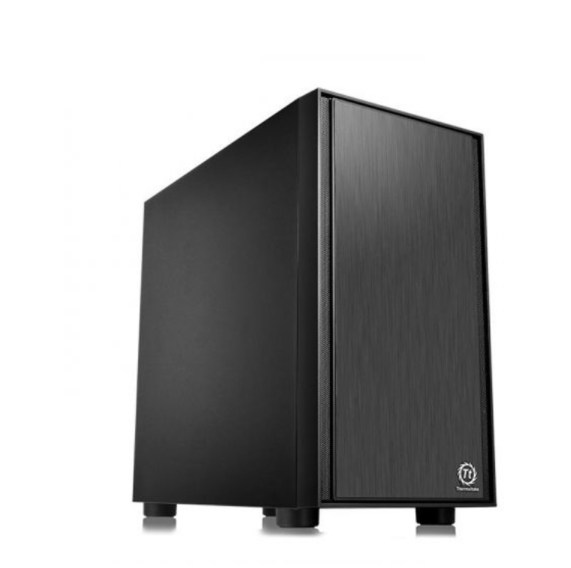

P/N

CA-1J1-00S1NN-00

SERIES

Versa

CASE TYPE

Micro Case

DIMENSION (H X W X D)

440 x 206 x 396
(17.32 x 8.11 x 15.6 inch)

NET WEIGHT

4.5 kg / 9.92 lb

SIDE PANEL

No Window

COLOR

Exterior & Interior : Black

MATERIAL

SPCC

COOLING SYSTEM

Rear (exhaust) :
120 x 120 x 25 mm fan (1000rpm, 16dBA)

DRIVE BAYS

Accesible: N/A
Hiden: 2 x 2.5″ ; 2 x 3.5”

EXPANSION SLOTS

4

MOTHERBOARDS

6.7” x 6.7” (Mini ITX)
9.6” x 9.6” (Micro ATX)

I/O PORT

USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

FAN SUPPORT

Front: 3 x 120mm , 2 x 140mm
Top: 1 x 120mm, 1 x 140mm
Rear: 1 x 120mm

RADIATOR SUPPORT

Front: 1 x 240mm
Top: 1 x 280mm
Rear: 1 x 120mm

OTHER

CPU cooler height limitation: 155mm
VGA length limitation: 350mm(Without Front Fan)
PSU length limitation: 220mm
